Air Duct Automatic Production Line II

Incldes leveling and beading unit,notching unit,hydraulic shearing unit,punching flange hole, Reinforcing hole available

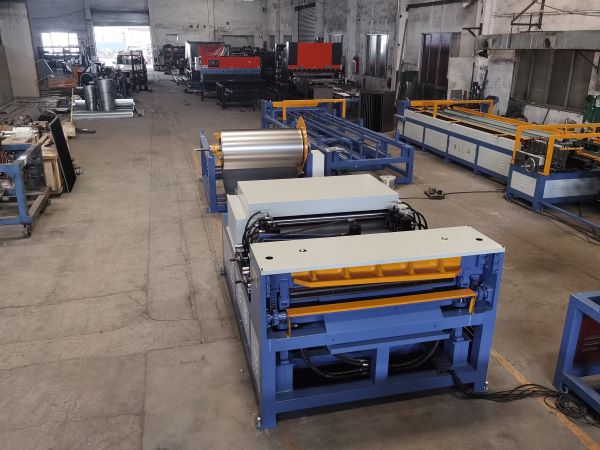

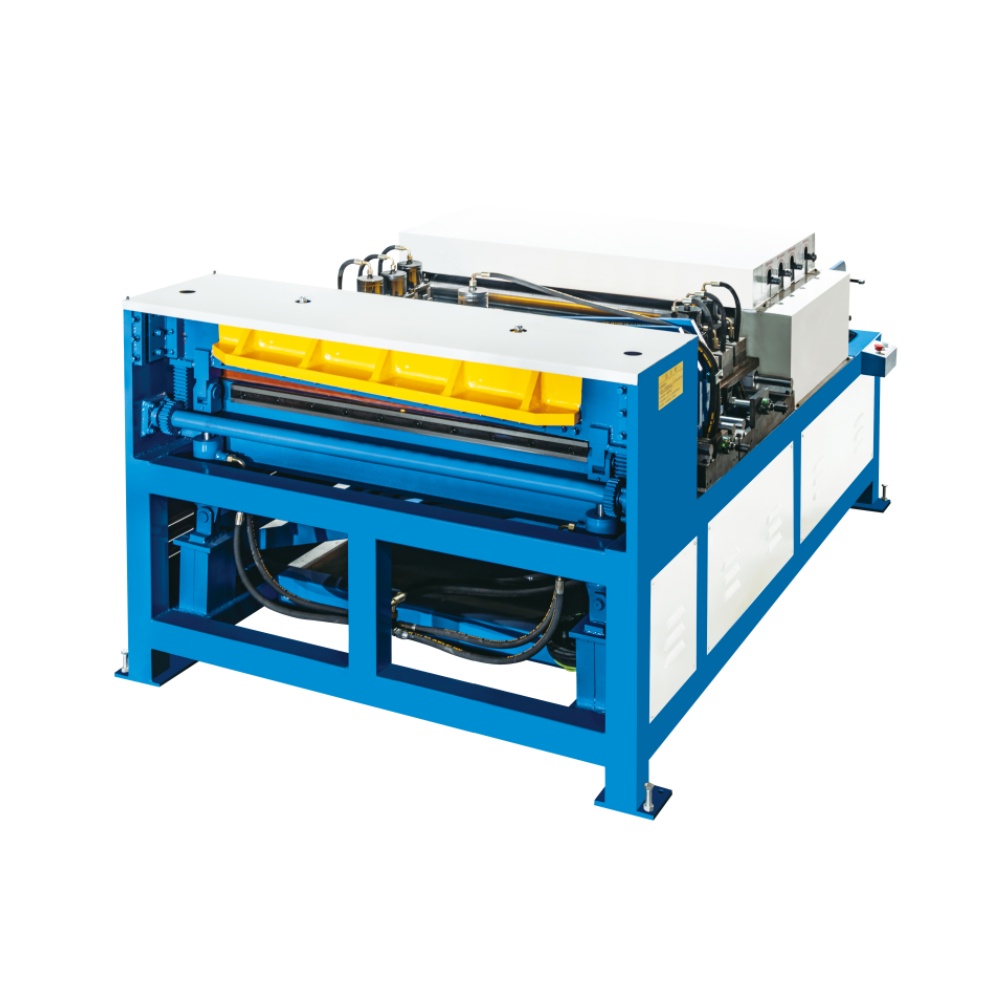

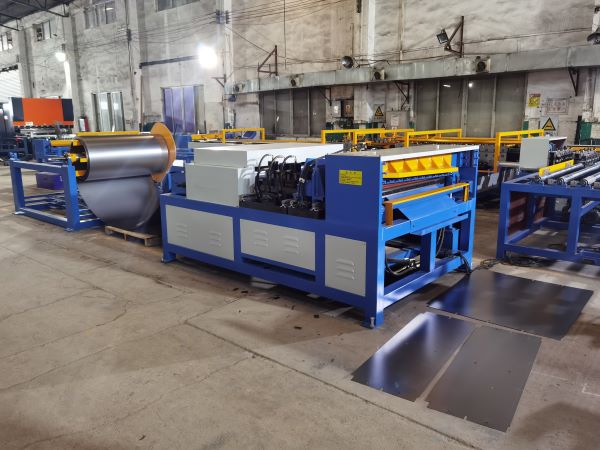

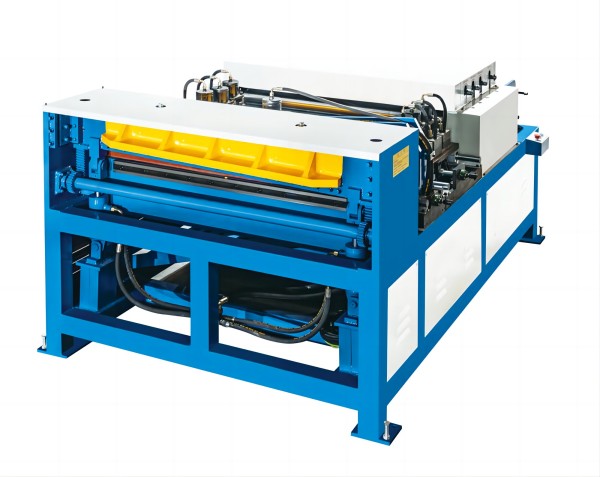

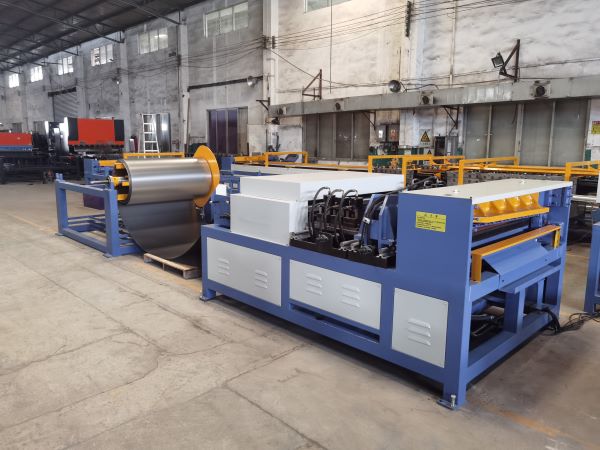

This auto duct forming line is composed of a decoiler, leveler, V and rectangular shape notching unit and shearer. In the standard configuration, metal sheet with   V and rectangular shape notching hole goes to TDF or C & S flange duct, thereinto metal sheet with rectangular shape notching can also goes to TDC flange duct. Semi-products formed by the line can form final ducts after some subsequent processes. The electric control system has a closed-loop feedback system, high precision and stability. The maximum operating speed is 20m/min. Length tolerance is ±0.5mm, diagonal tolerance is ±0.8mm. This line provides high working efficiency and saves labor cost compare with manual work.

★Features★

Incldes leveling and beading unit,notching unit,hydraulic shearing unit.maximum feeding speed is 16m/min by length tolerance is ±0.5mm

and the diagonal tolerance is ±0.8mm.

Other realted machines for air duct

Fodi Machinery Co.Ltd  Development History

★ Profound experience in HVAC Ducting Machinery (Since 1988).

★ Profound experience in Automatic Spiral Duct Forming (Since 2004).

★ Profound experience in Automatic Duct Production Line (Since 2006).

★ Have the largest inventory for HVAC Duct Making machines in the industry.

★Got Pantened for Fire Damper Series

★ Real manufacturer with the most complete varieties of HVAC Ducting Machinery in China.

★★★Fodi company can give you both CNC duct production line machine which can manufacture air duct automatically. We will suggest a whole machines series in accordance with different customers needs★★★
