Flexible Air Duct Connector with Flange Hole Punching Fuction

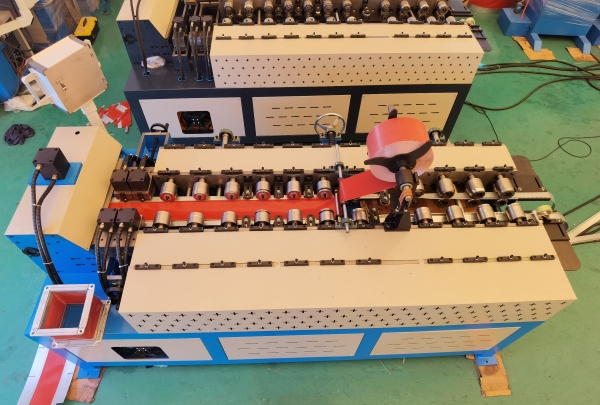

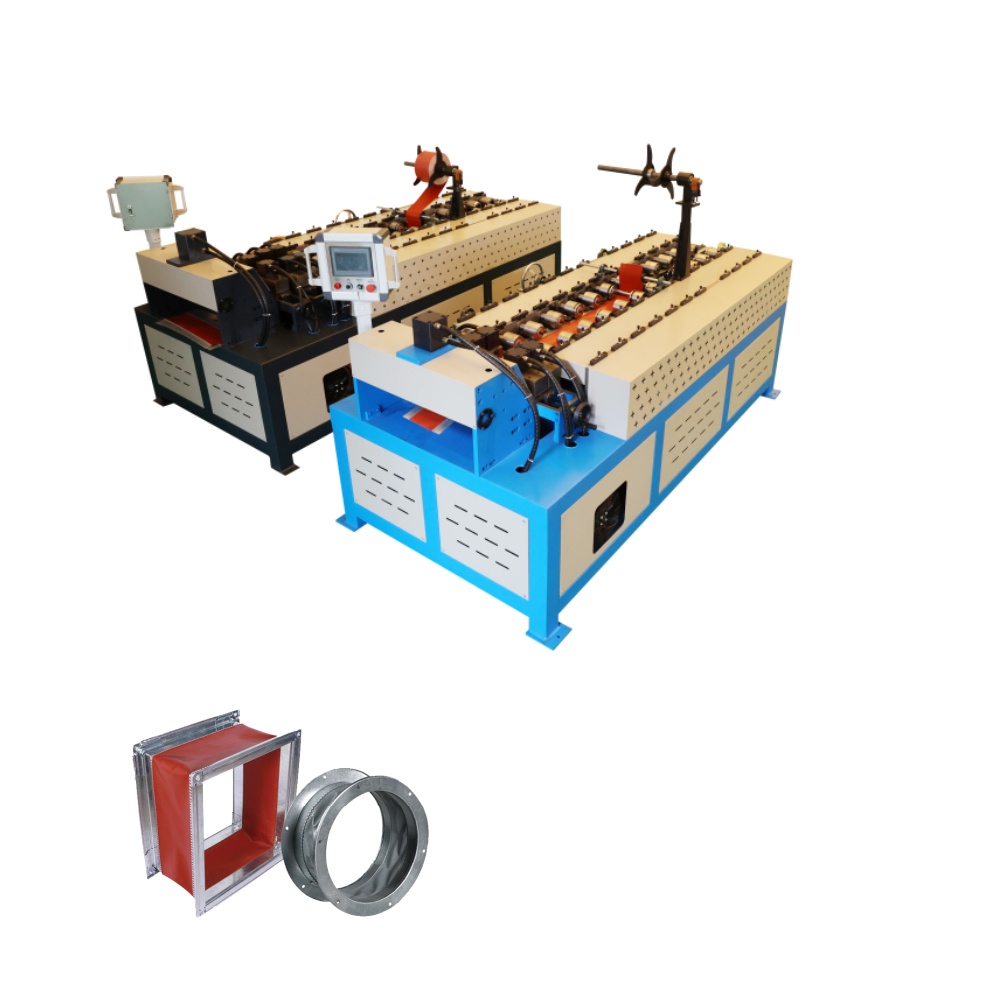

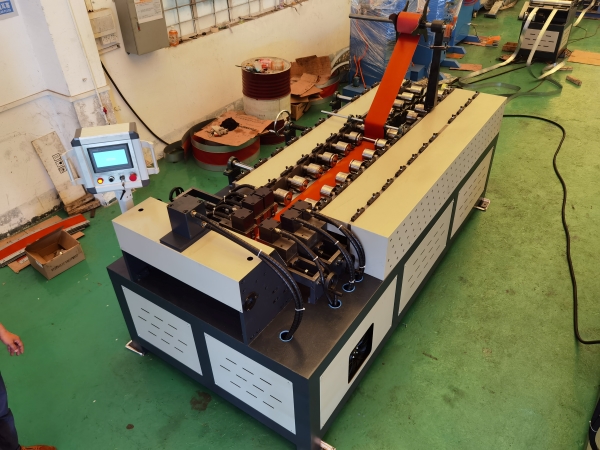

AutoFlex Duct Connector Roll Forming Line – it is composed of Feeding ,Oval hydraulic

 punching , roll forming,Notching (optional) and Cutting.

The whole lines is for making the duct connector which is widely used in round duct and

 squre duct connection .

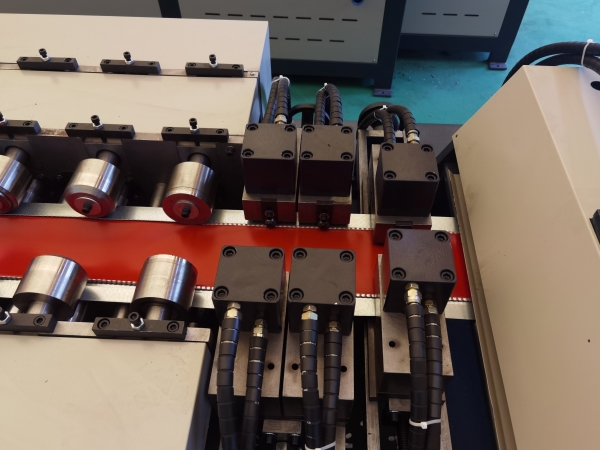

1. Hydraulic punching;

2. hydraulic automatic cutting;

3. the main control box is Schneider, the encoder is Japan Omron, PLC and inverter are

 Taiwan Delta and the hydraulic cylinder is Taiwan

Jiagang;

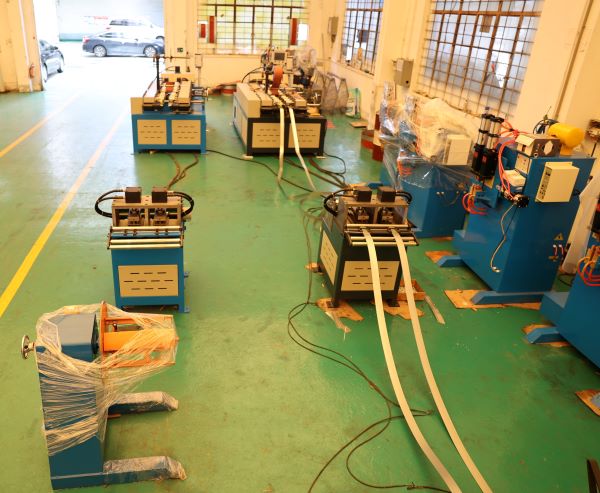

4. consist: two decoilers (bearing weight less than 800kg), hydraulic servo feeder, 2 sets

of hydraulic punching moulds, main machine, and a holder.

Main Parameters:

Thickness of galvanized steel: 0.4-0.8mm

Width of galvanized steel: 50-150mm

Width of fireproof cloth: 90-300mm

Width of final product: 140-540mm
